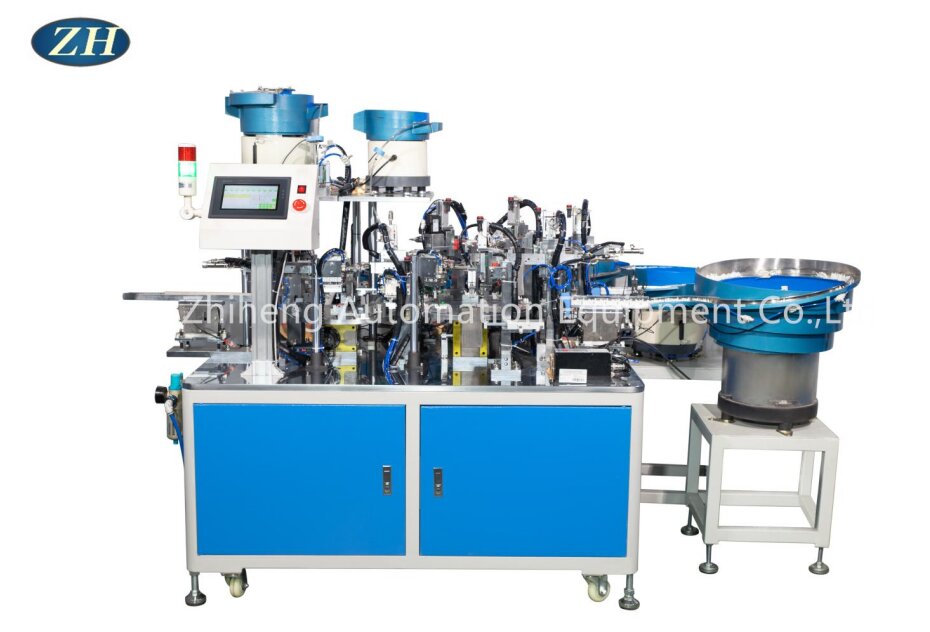

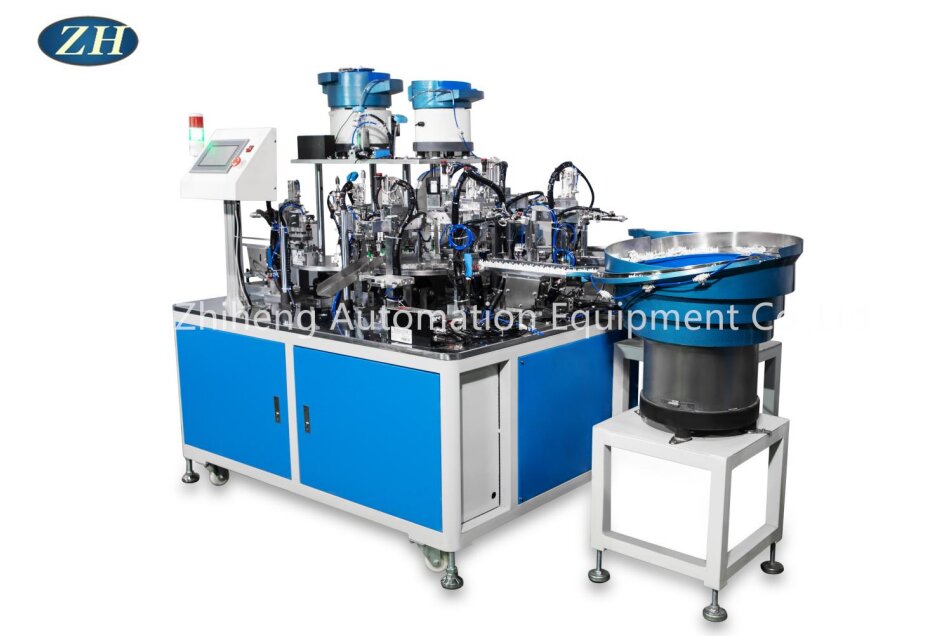

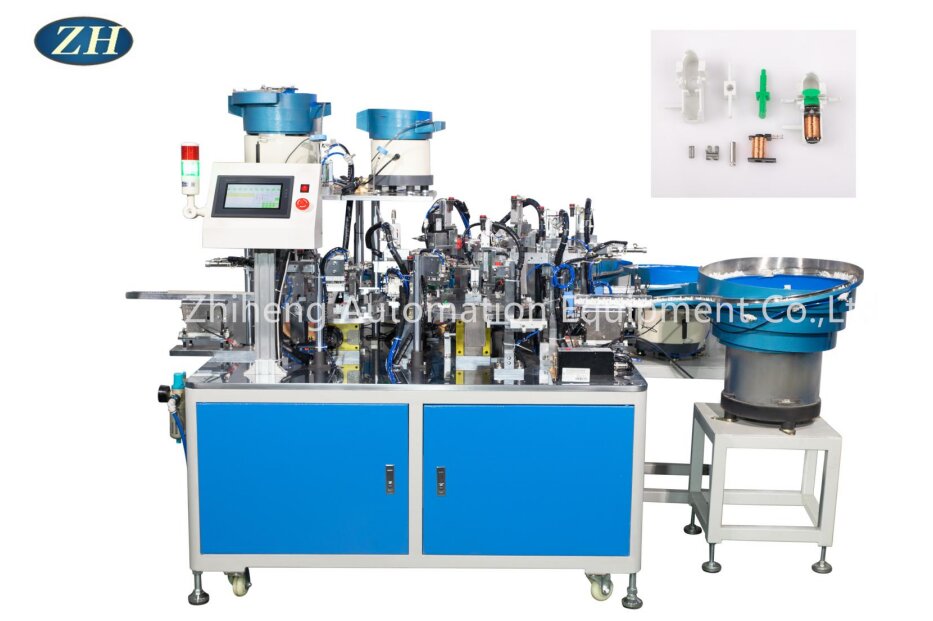

Push-Button Assembly Machine Easy To Operate

Introduction of Push-Button Assembly Machine Easy To Operate:

Yuyao Zhiheng is a proficient manufacturer and supplier of Push-Button Assembly Machine Easy To Operate in China. If you're searching for the best Push-Button Assembly Machine Easy To Operate at an affordable price, get in touch with us right away!In the design of the Push-Button Assembly Machine, the convenience and efficiency of operation are fully considered. Through the efforts of humanized design, high automation, flexibility and scalability, fault diagnosis and alarm system, easy maintenance and maintenance, training and documentation support, the button assembly machine is easy to operate and can meet the needs of different users.

Parameter (Specification) of Push-Button Assembly Machine Easy To Operate:

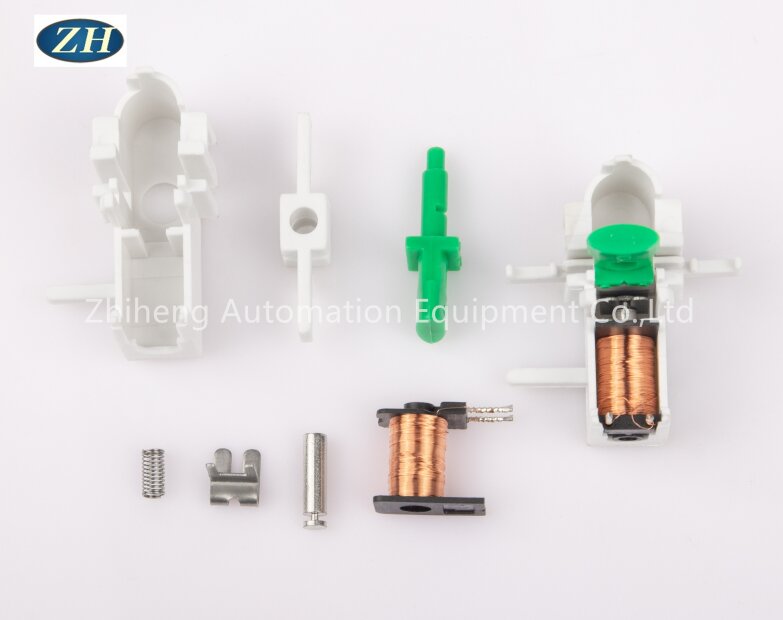

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
