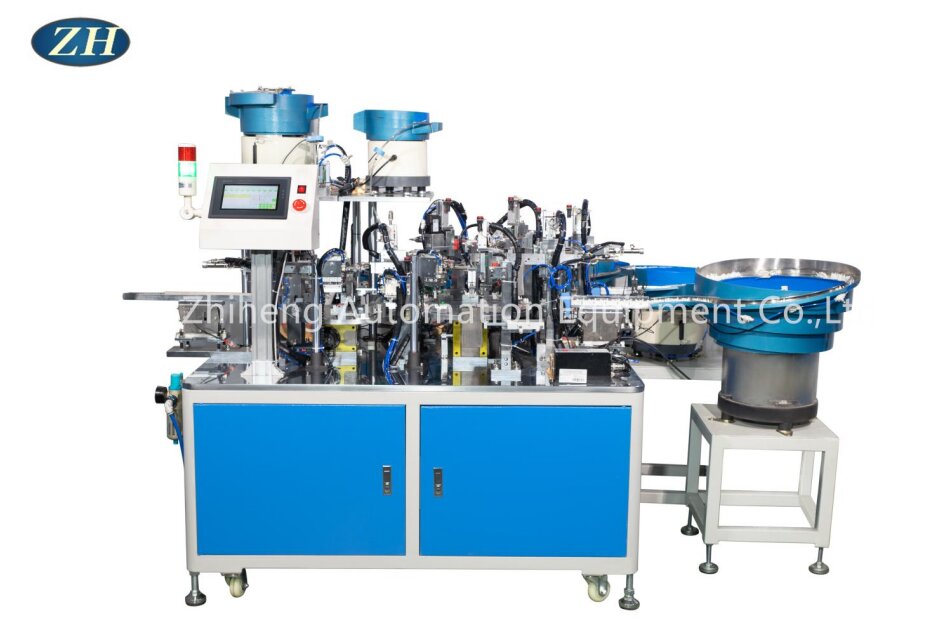

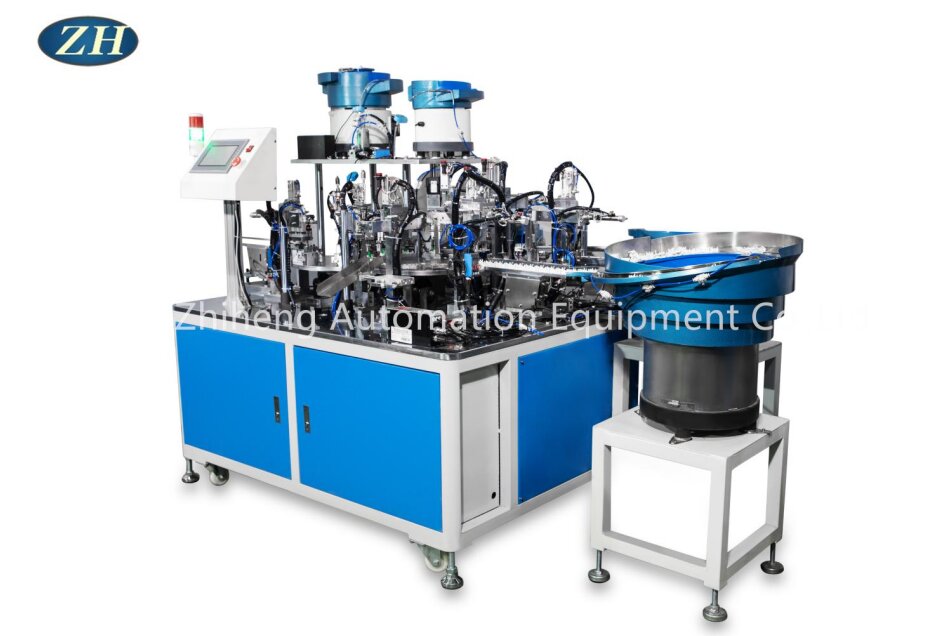

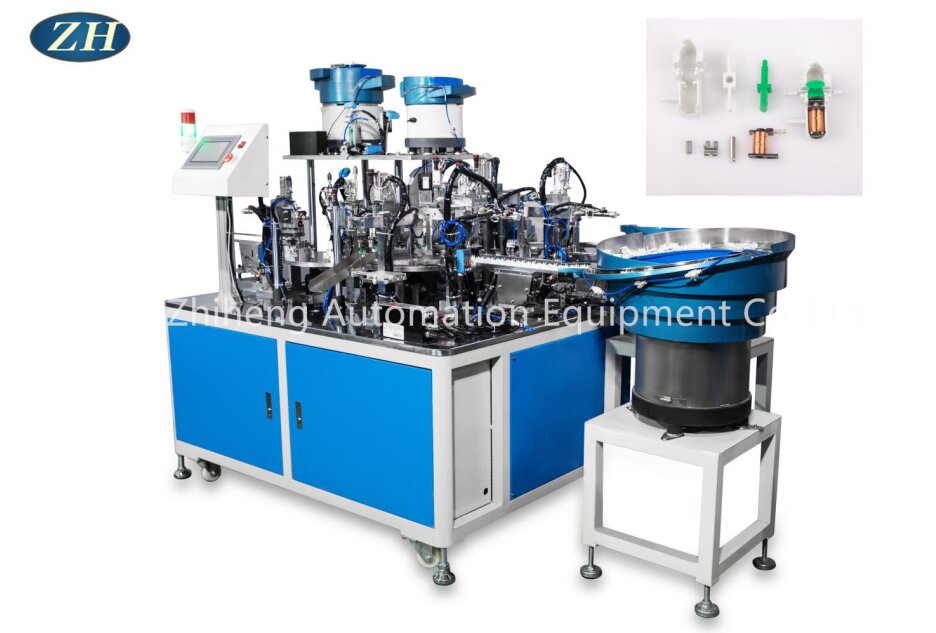

Push-Button Assembly Machine Good Flexibility

Introduction of Push-Button Assembly Machine Good Flexibility:

As one of professional high quality Push-Button Assembly Machine Good Flexibility manufacturers, you can rest assured to buy Push-Button Assembly Machine Good Flexibility from Yuyao Zhiheng and we will offer you the best after-sale service and timely delivery.Push-Button Assembly Machine is usually equipped with a variety of fixture and fixture, can adapt to different shapes, sizes and materials of the button assembly. These fixtures can be quickly replaced as needed, allowing for flexible assembly of different products.Through the programmable control system (such as PLC), the button assembly machine can easily adjust the assembly parameters, such as assembly force, assembly speed, assembly position, etc., to adapt to the assembly requirements of different products.

Parameter (Specification) of Push-Button Assembly Machine Good Flexibility:

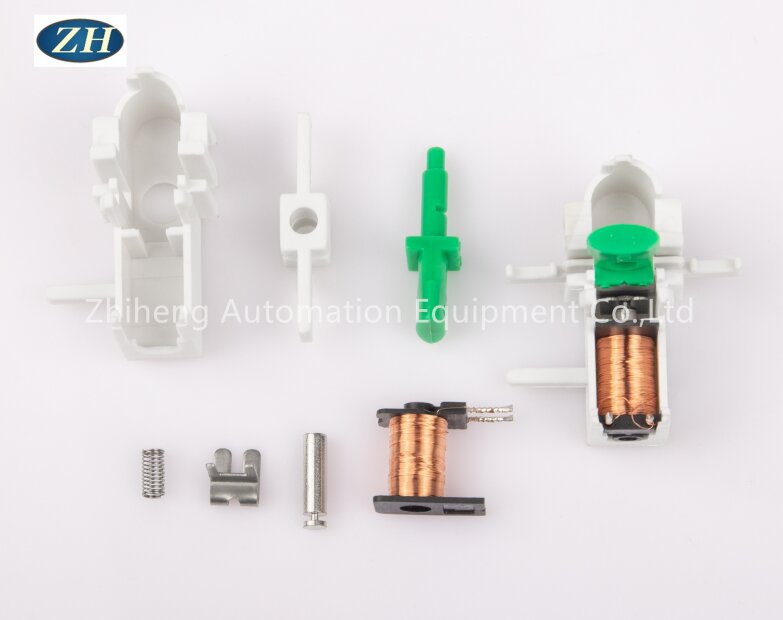

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
