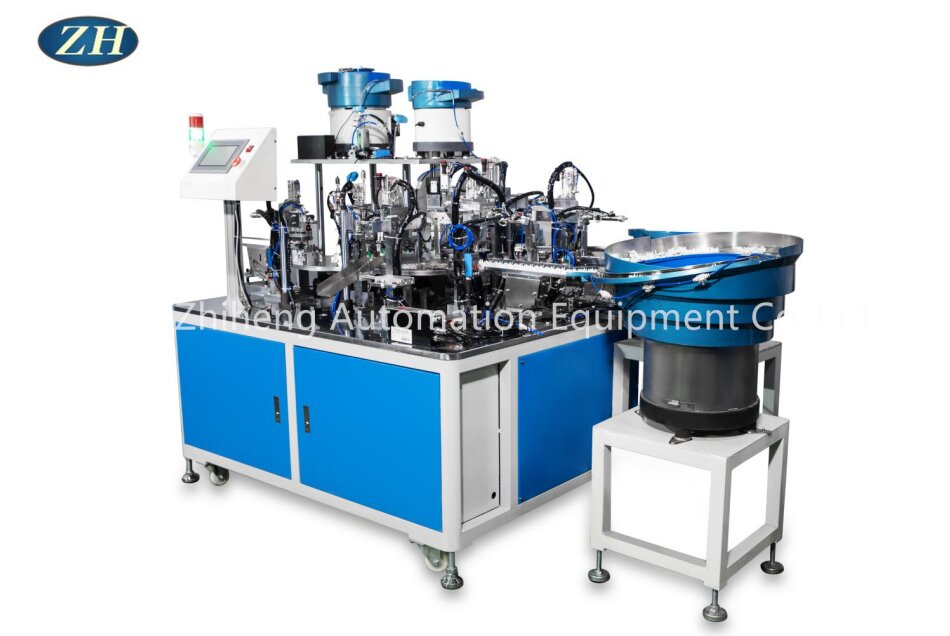

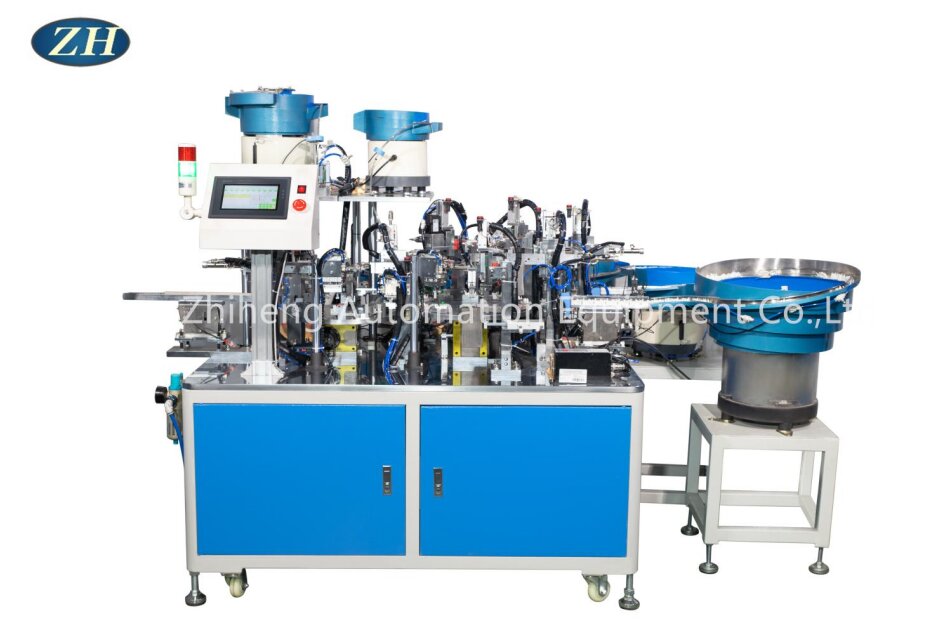

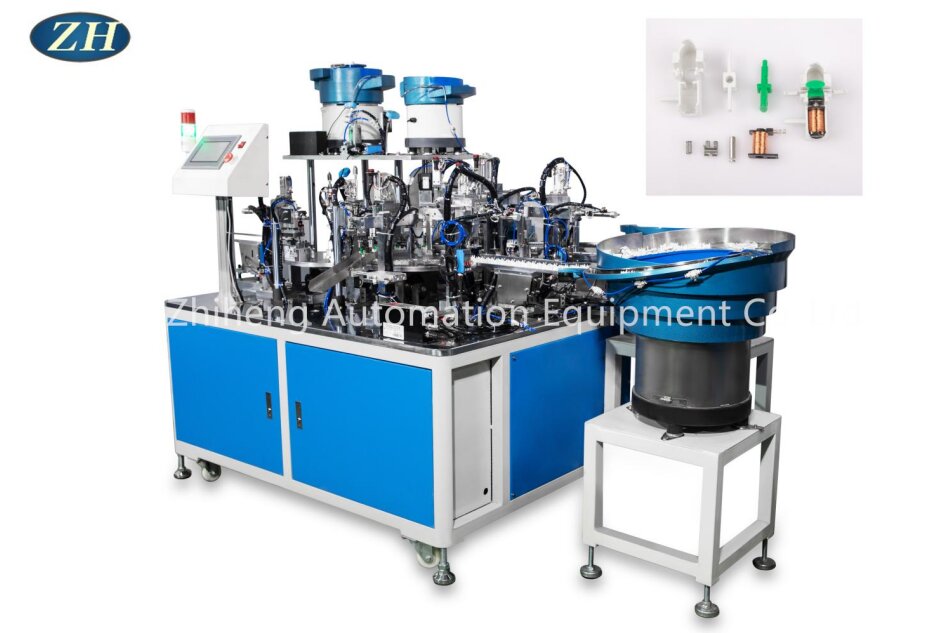

Push-Button Assembly Machine Good Security

Introduction of Push-Button Assembly Machine Good Security:

Yuyao Zhiheng is one of Push-Button Assembly Machine Good Security manufacturers and suppliers in China who can wholesale Push-Button Assembly Machine Good Security. We can provide professional service and better price for you. If you interested in Push-Button Assembly Machine Good Security, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.Push-Button Assembly Machine Good Security is mainly reflected in the design safety, operation safety, fault detection and alarm system, as well as maintenance and maintenance. These measures together constitute the safety guarantee system of the button assembly machine to ensure the safety of the operator and the stable operation of the production line.

Parameter (Specification) of Push-Button Assembly Machine Good Security:

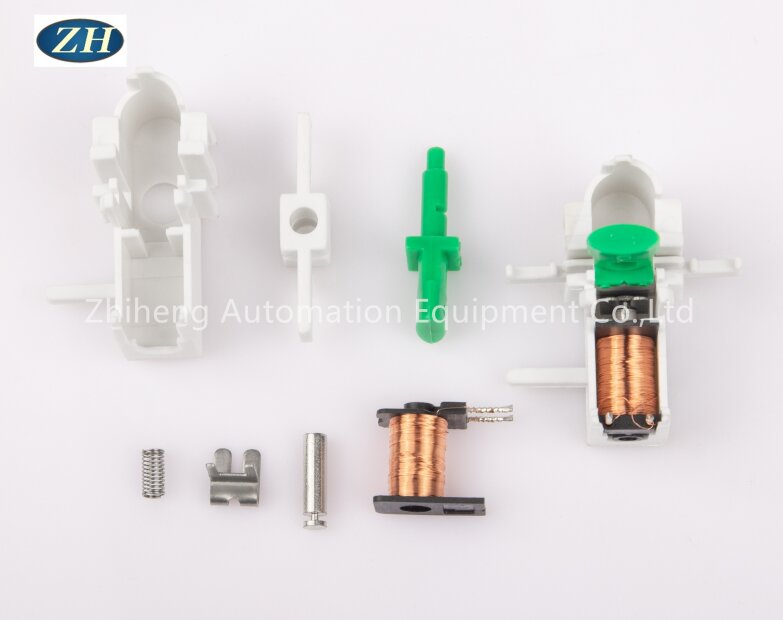

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
