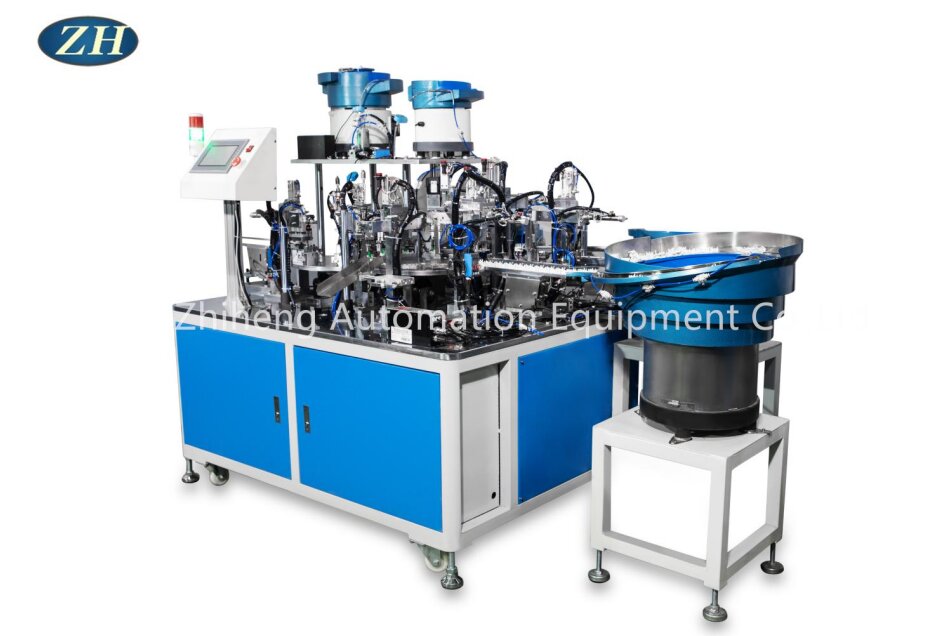

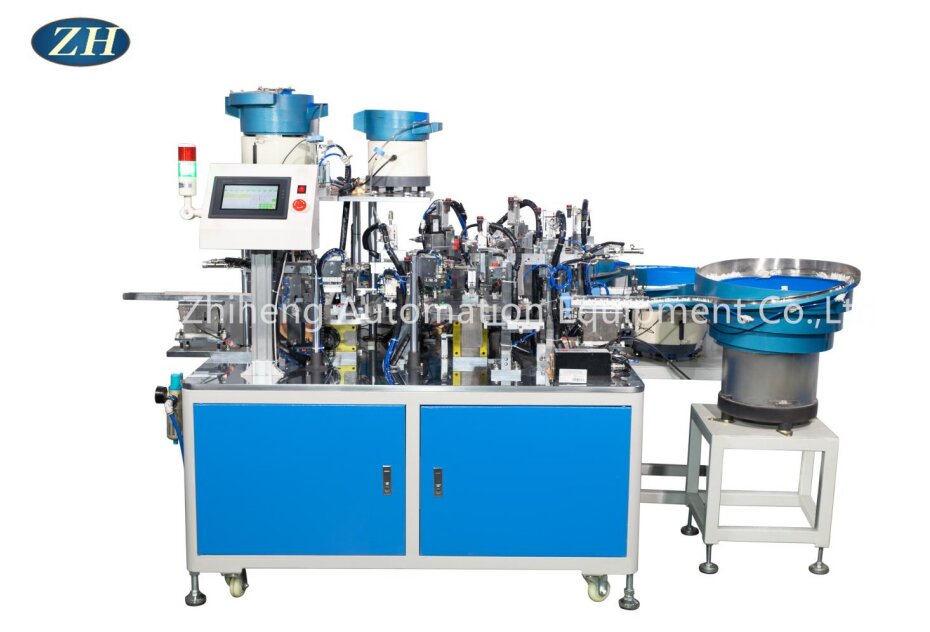

Push-Button Assembly Machine Good Stability

Introduction of Push-Button Assembly Machine Good Stability:

Yuyao Zhiheng invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality Push-Button Assembly Machine Good Stability. We are looking forward to working with you.Push-Button Assembly Machine Good Stability can ensure the assembly accuracy and consistency of key components, thereby improving the overall quality of the product.Stable machine performance can reduce downtime, improve production efficiency and reduce production costs.High stability and high quality products can enhance the brand image and market competitiveness of enterprises.With the continuous development of science and technology, Push-Button Assembly Machine Good Stability is developing in the direction of more intelligent, efficient and customized.

Parameter (Specification) of Push-Button Assembly Machine Good Stability:

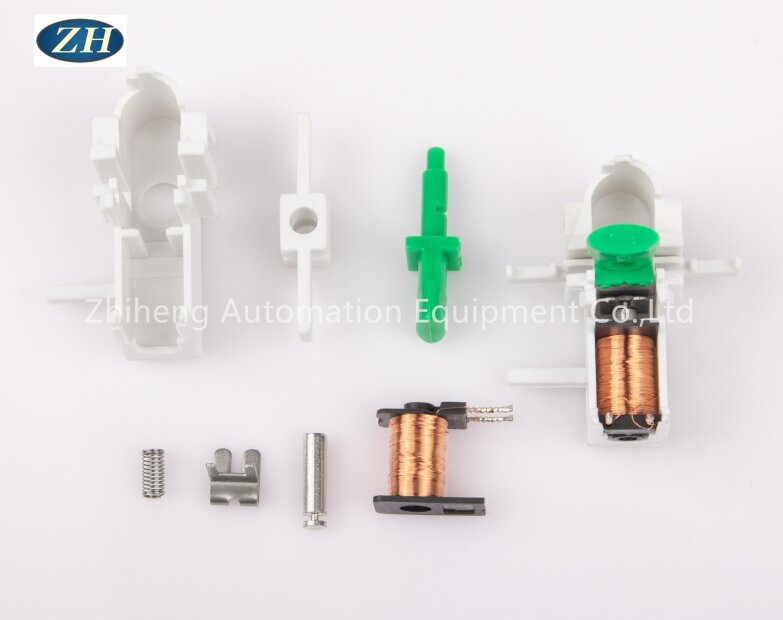

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
