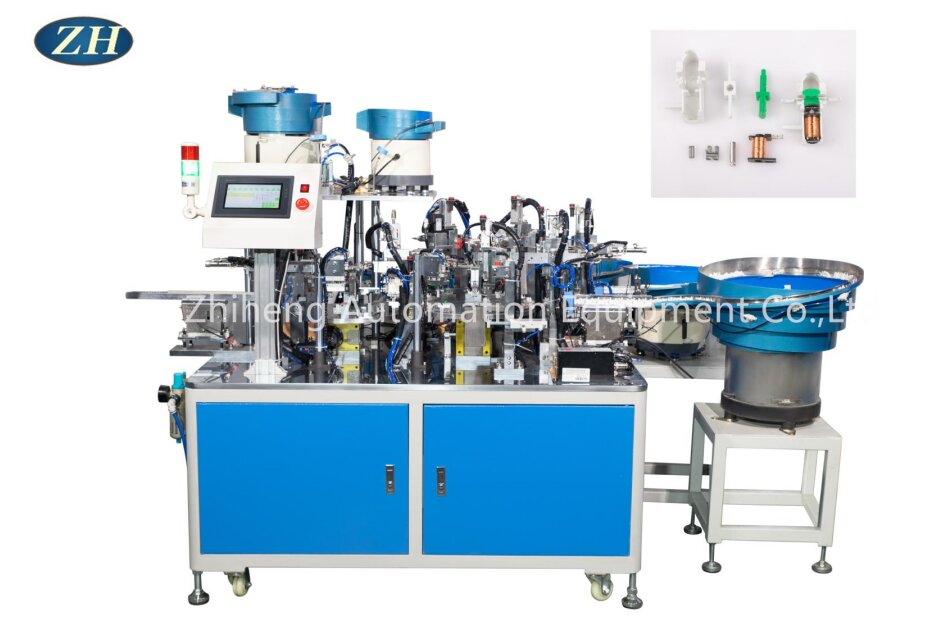

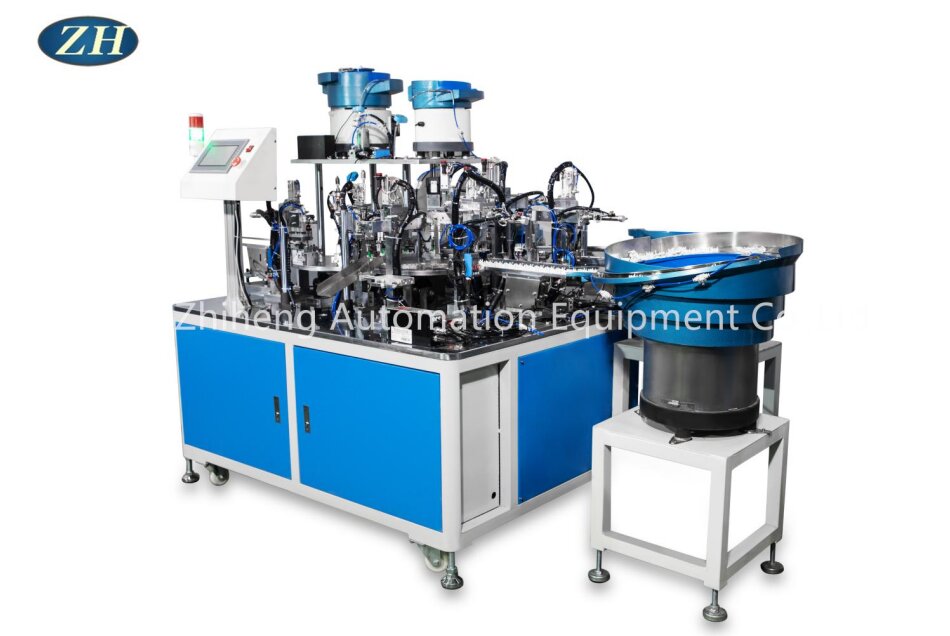

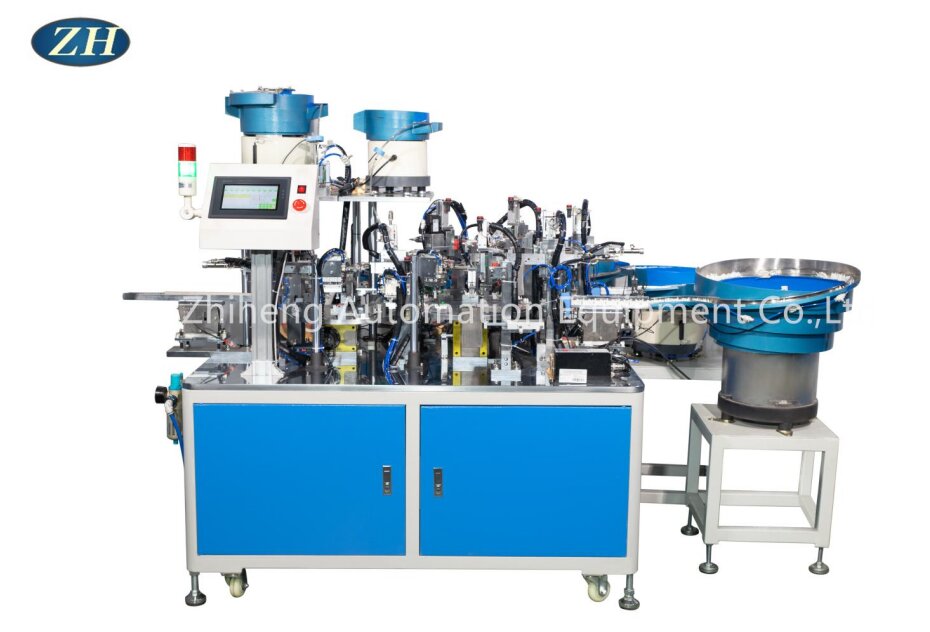

Push-Button Assembly Machine High Accuracy

Introduction of Push-Button Assembly Machine High Accuracy:

You can purchase Push-Button Assembly Machine High Accuracy from Yuyao Zhiheng with confidence, as we are a proficient producer of high-quality Push-Button Assembly Machine High Accuracy. We promise to provide you with the best after-sale service and prompt delivery.With the increasingly obvious trend of intelligent and automation in the manufacturing industry, the high-precision button assembly machine will develop in the direction of more intelligent, networked and modular. In the future, the equipment will integrate more intelligent sensors, machine vision technology and big data analysis capabilities to achieve more efficient automated production, more precise quality control and more flexible production scheduling. At the same time, the equipment will pay more attention to environmental protection and energy saving to meet the needs of sustainable development.

Parameter (Specification) of Push-Button Assembly Machine High Accuracy:

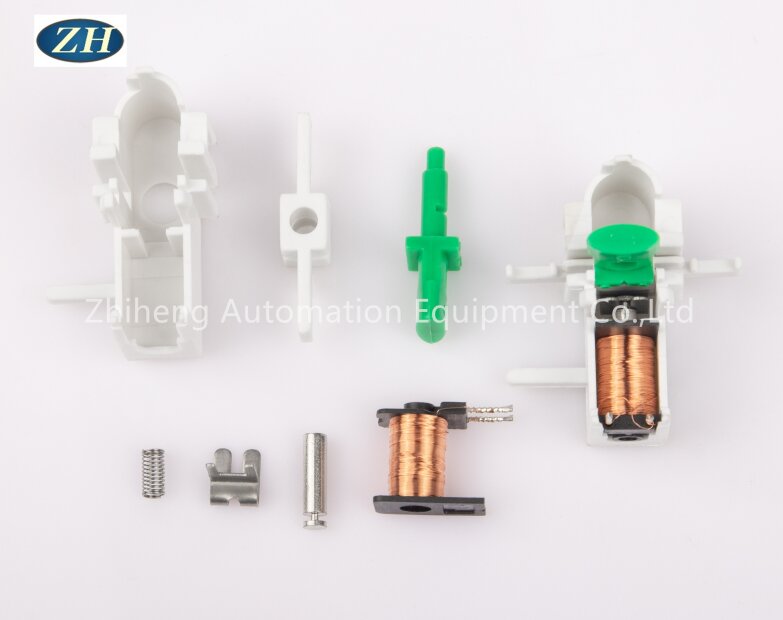

1. Automatic feeding base button

2. Detection of base button

3.Automatic feeding plastic pin

4.Automatic feeding Stainless steel plate

5.Automatic assembly the plastic pin and Stainless steel plate

6.Automatic feeding the plastic pin and stainless steel plate assemblies

7.Detection of the plastic pin and stainless steel plate assemblies

8.Automatic feeding reset button

9.Detection of reset button

10.Manual feeding the coil

11.Put the spring into the coil

12.Insert the core into the coil

13.Detection of the spring and core

14.Automatically mounts the assembled coil into the button base

15.CCD check the installation

16.Automatic blanking of good and bad products

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1500-1800PCS/hour
