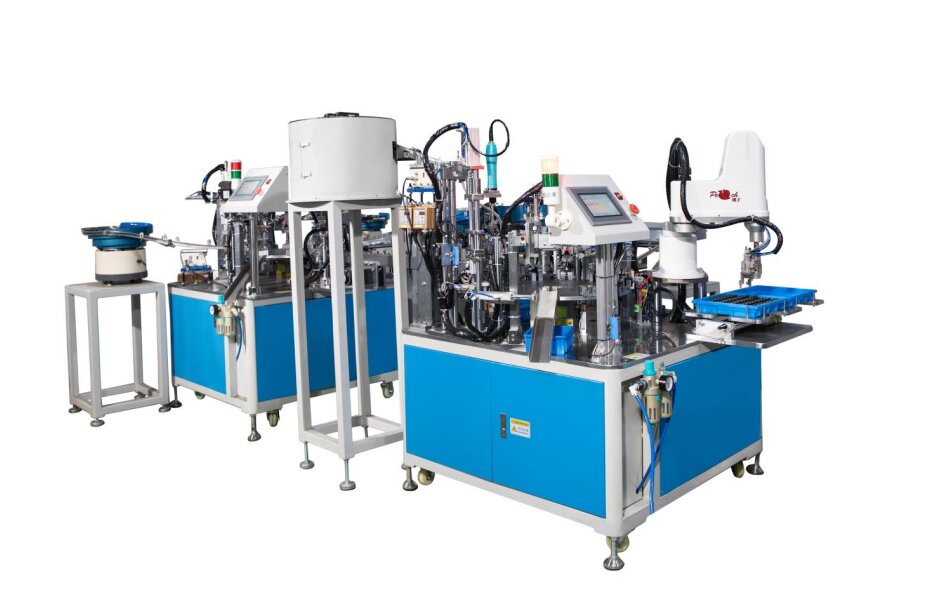

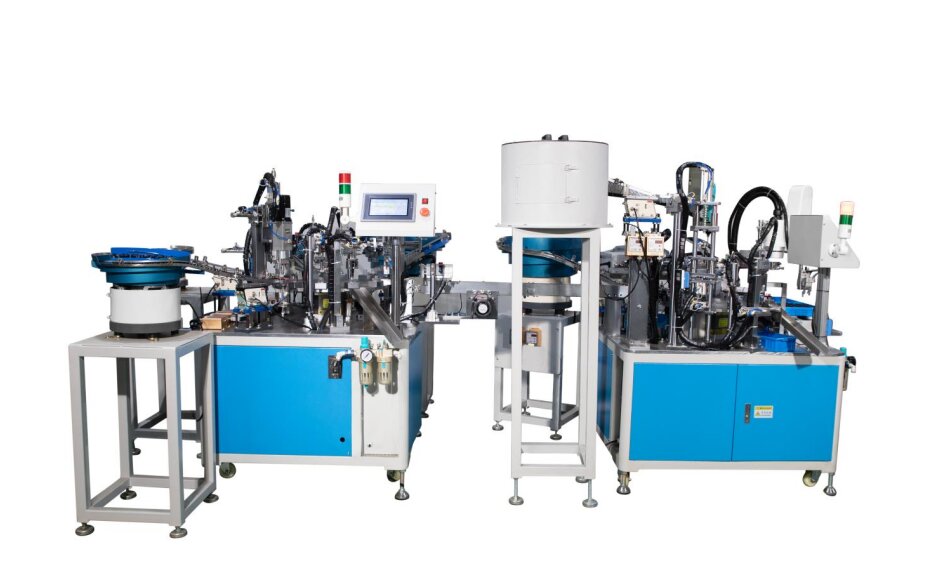

Solenoid Valve Assembly Machine High Precision

Introduction of Solenoid Valve Assembly Machine High Precision:

Yuyao Zhiheng is a proficient manufacturer and supplier of Solenoid Valve Assembly Machine High Precision in China. If you're searching for the best Solenoid Valve Assembly Machine High Precision at an affordable price, get in touch with us right away!The solenoid valve assembly machine uses precision components and manufacturing processes to ensure that the size, shape and position accuracy of each component meets a high standard. The transmission mechanism, positioning device and detection sensor inside the machine are also carefully designed and manufactured to achieve high precision assembly and detection.Through highly accurate assembly and inspection processes, solenoid valve assembly machines reduce waste and errors in the production process. This helps to optimize production efficiency, increase output and reduce costs.

Parameter (Specification) of Solenoid Valve Assembly Machine High Precision:

Machine No.1：

1.Automatic feeding covers;

2. Automatic feeding gasket

3.Automatic feeding plastic washer

4.Automatic feeding screws

5.Automatic feeding of circuit board components, automatic circuit board detection（24V)，

6.Automatic assembly

7. Automatic blanking (blanking of good and bad product）

Machine No.2：

1. Automatic feeding coils by mechanical arm

2.Automatic feeding rubber blanket

3.Automatic feeding of upper cover assembled

4.Automatic feeding screws

5.Automatic locking screws

6.Automatic blanking (blanking of good and bad product）

Specification,

Power supply:AC 220V /50HZ

Air  pressure：above 0.6 MPa

Yield:1600-1800PCS/hour
